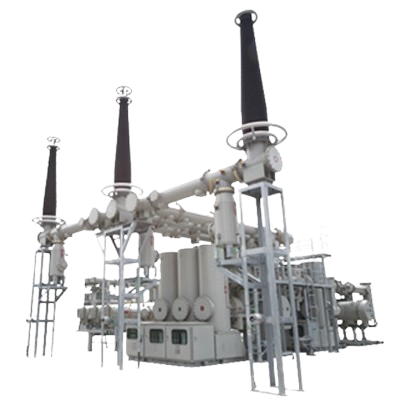

145 kV Gas Insulated Switchgear (GIS)

Inkan Power proudly delivers advanced 145 kV Gas Insulated Switchgear (GIS) systems engineered for safe, reliable, and space-efficient power transmission. Designed for critical infrastructure, substations, and industrial networks, our GIS technology provides modular solutions to meet the demands of modern energy distribution.

Key Features

Compact Structure : Our 145 kV GIS boasts a three-phase common enclosure design, maximizing space savings and installation flexibility for diverse project requirements.
High Reliability: Built to reduce annual gas leakage below 0.1%, and with exceptional insulation performance, our systems guarantee whole bay partial discharge of less than 3pC. Advanced sealing and interlocking mechanisms minimize misoperation and maximize uptime.
Maximum Safety: Inspection pathways and access are strategically positioned, eliminating the need for personnel to enter the bay for routine checks, reducing risk and operational hazards.
Modular Design: Standardized flanges and interchangeable modules enable customized configurations, future expansion, and optimal layout of substations or switchgear rooms.

Technical Specifications

Rated Voltage: 145 kV
Rated Current: Up to 3,150 A
Rated Short-Time Withstand Current: Up to 40 kA for 4 seconds
Peak Withstand Current: Up to 104 kA
Power-Frequency Withstand Voltage (1 min): 275 kV between phases and earth
Lightning Impulse Withstand Voltage: Up to 650 kV between phases and earth
Switching Mechanism: Advanced three-position switch system for precise circuit control and safety
Applicable Standards: IEC 62271-203, IEC 62271-100

Applications and Benefits

Space Optimization: Ideal for projects where land or indoor space is limited, decreasing civil work costs and accommodating flexible layouts for utilities or industrial users.
Smart Grid Compatibility: Integrated digital monitoring enables real-time performance analytics and system control for enhanced safety and efficiency.
Environmental Responsibility: Inkan Power’s GIS systems minimize SF6 usage and are manufactured under ISO 14001-certified processes, supporting a sustainable future.
Minimal Maintenance: Designed for long-term durability, our GIS solutions offer low maintenance costs and high reliability, ensuring operational continuity.
